Import-imitated floor series
Product features:

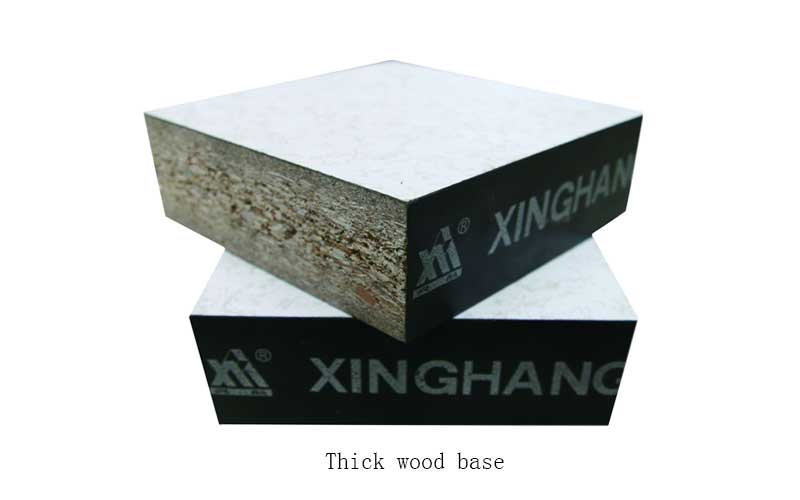

Extra thickness wood base,galvanized board base,black electric rubber sides,antistatic surface;thin joint,pleasing construction effed,strong durability.
Scope of use:
Used widely in all kinds of high-grade computer rooms,especially in monitonng computer room and information center with heavy-duty equipments.
Product parameters:
|
型號 |
Specifications
|
集中載荷（撓度=2mm） |
均布載荷（N/㎡） Uniformly distributed load
|
極限集中載荷（N） Limit of concentrated load
|
滾動載荷（N） Uniformly distributed load
|
系統電阻（Ω） System resistance
|
|||
|
國際標準 |
國家標準 |
ib |
N |
Kg |
|||||
|
FS700 |
CQ |
600*600*30 |
700 |
1960 |
200 |
9720 |
5880 |
980 |
1*105-9
|
|
FS800 |
Q |
600*600*35 |
800 |
2950 |
300 |
12500 |
8850 |
2255 |
|
|
FS1000 |
B |
600*600*40 |
1000 |
4450 |
450 |
23000 |
13350 |
3560 |
|
|
FS1250 |
Z |
600*600*45 |
1250 |
5560 |
560 |
33000 |
16680 |
4450 |
|
01 General design overlay floor 1
Extra thickness particle board base,high wear-resistance HPL overlay,electric rubber side stuck around.back cover of galvanized board.Suitable for all kinds of high -grade computer rooms.
02 General design overlay floor 2
Extra thickness particle board base,high wear-resistance HPL overlay,electric rubber side stuck around.back cover of galvanized board.Suitable for all kinds of high -grade computer rooms.
03 PVC conductive static overlay floor
Extra thickness particle board base,consistent PVC overlay,electric rubber side stuck around,back cover of galvanized board electric.Suitable for all kinds of high-grade computer rooms.

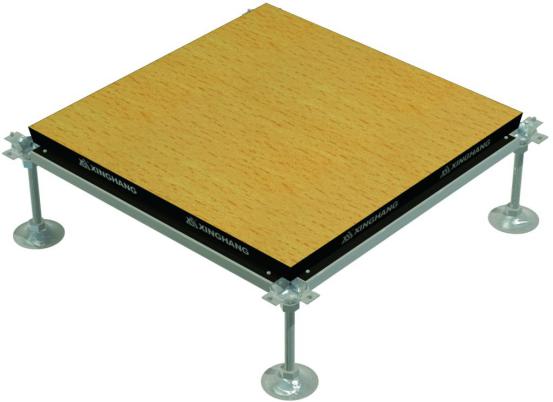

04 Wood-grain overlay floor
Extra thickness particle board base,wood-grain HPL overlay,electric rubber side stuck around,back cover of galvanized board.Suitable for all kinds of high-grade computer rooms.
